PFC 24V80W Led Power Supply CE,ROHS,UL,VDE,CUL,CSA,CLASSII,EMC,EMI

  • Product Details
  • Company Profile

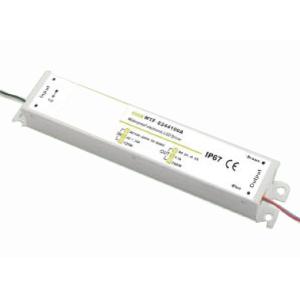

PFC 24V80W Led Power Supply CE,ROHS,UL,VDE,CUL,CSA,CLASSII,EMC,EMI

Details:


PFC 24V80W Led Power Supply CE,ROHS,UL,VDE,CUL,CSA,CLASSII,EMC,EMI

Parameter:


MODEL : 2480AInput Voltage: AC 100-250V (AC 90-264V MAX)Output Voltage: DC 24VOutput Power: 80WOutput Current: 3.3 A


Ripple & Noise <240mVp-pPower Factor >0.95Turn on delay time At 100Vrms 3 SecLoad regulation ±2%Frequency range 47~65HzEfficiency (Typ.) >88%Leakage current 0.5mA/240VACPROTECTION Over load 4.6~6AShort circuit yesOver TEMP. over-temperature protection 80℃ENVIRONMENT Working TEMP. `-30℃~60℃Storage TEMP. `-40℃~85℃Working Humidity IP66Vibration 10~500Hz,2G 10min/1cycle,TEMP. coefficient ±0.03%/℃(0~50℃)OTHERSMTBF 50,000 Hrs @ 100% of load, continues operation,max 5% failures @ Tamb = 40℃Input Terminals LineBlack Neutral :White / 2 x AWG18 Length 300 mmOutput Terminals PositiveRed Negative :Blue / 2 x AWG18 Length 300 mmDimension 240 x43x30mmPacking 10pcs/carton ,900pcs/pannelWeight 628gSafety ApprovalProduct Safety :Class II, SELV output, suitable enclosure is provided

Quality PFC 24V80W Led Power Supply CE,ROHS,UL,VDE,CUL,CSA,CLASSII,EMC,EMI for sale
